How to Measure an Air Filter
Step-by-Step Air Filter Measurement Guide
Complete Air Filter Size Guide and Measurement Instructions
Learning how to measure air filter dimensions accurately is essential for finding the perfect fit for your vehicle. Whether you need to measure a round air filter or determine air filter dimensions by size, this comprehensive air filter fitment guide will walk you through each step. Use our air filter size chart and measurement techniques below to find the correct air filter by size for your custom installation or replacement needs.
Understanding air filter measurements ensures proper fitment and optimal engine performance. Follow our detailed air filter size guide to measure inside diameter, outside diameter, base diameter, and height with precision. These air filter dimensions are critical for selecting the right Green High Performance Air Filter for your application.
How to Measure Air Filter Inside Diameter (ID)

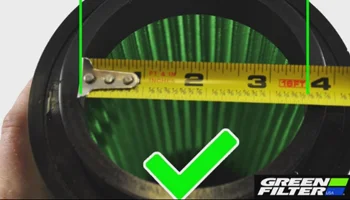

When measuring air filter dimensions, start with the inside diameter. This critical air filter measurement determines the proper fitment on your intake tube. Measure across the inside opening of the filter opening, NOT from the outsides of the flange, to get accurate air filter dimensions.
✓ Correct
✗ IncorrectRound Air Filter Measurements: Outside Diameter - Top (OD-T)
For round air filter sizes, the top outside diameter is a key air filter dimension. Measure across the widest part of the top of the filter from the outside edges. This round air filter measurement helps ensure proper clearance in your engine bay and accurate air filter fitment.
Air Filter Dimensions: Outside Diameter - Base (OD-B)
The base outside diameter is another essential air filter measurement for determining the correct air filter by size. Measure across the base of the filter. Since the filter's flange will likely be in the way, you will need to measure across the top of the flange to get accurate air filter dimensions. This measurement is critical for proper air filter fitment.
✓ Correct
✗ IncorrectAir Filter Size Guide: Measuring Height (H)
Height is the final critical air filter measurement needed to find the correct air filter by size. Measure from the base of the filter (not the flange) to the top of the filter, including the filter end cap. Accurate height measurements combined with diameter measurements ensure you select the right air filter by dimensions for optimal performance and proper air filter fitment.
✓ Correct
✗ Incorrect
Air Filter Size Chart and Fitment Guide
Once you've learned how to measure an air filter using the steps above, you can use our comprehensive air filter size chart to find the perfect match. Green Filter offers hundreds of round air filter sizes and configurations to fit virtually any application. Search for air filters by dimensions using our online catalog, or contact our team for assistance with custom air filter measurements.
Understanding air filter dimensions and how to measure air filter components correctly ensures optimal engine performance and proper fitment. Whether you're looking for a specific air filter by size or need help interpreting round air filter measurements, our air filter fitment guide and size chart make it easy to find exactly what you need. All Green Filter products are made in the USA and backed by our lifetime warranty.
Need help finding the right air filter by dimensions? Use our vehicle selector tool to search by make and model, or browse our complete air filter cross reference to match OEM part numbers. Our experts are ready to help you select the correct air filter using your air filter measurements.
FAQs About Measuring an Air Filter
Measure the inside diameter, top outside diameter, base outside diameter, and height of the filter. These air filter measurements help you find the correct replacement or clamp-on filter size.
The main air filter dimensions you need are inside diameter, outside diameter at the top, outside diameter at the base, and overall height. These measurements help confirm proper fitment.
Measure across the inside opening of the filter flange. Do not measure from the outside edges of the flange, because that can give an incorrect inside diameter.
No. Measure the height from the base of the filter body to the top of the filter, including the end cap, but do not include the flange.
Yes. Once you have the correct air filter measurements, you can search by size or contact Green Filter for help finding the right filter for your application.
